¡Û Specifications |
|
TYPE |
IL (Insertion Loss) |
RL (Return Loss) |
SM (Single Mode) |
MM (Multi Mode) |
PC |
APC |
SC |
Æò±Õ : < 0.2dB , ÃÖ´ë : < 0.4dB |
< 0.4dB |
> 50dB |
> 60dB |
ST |
Æò±Õ : < 0.2dB , ÃÖ´ë : < 0.4dB |
< 0.4dB |
> 50dB |
- |
LC |
Æò±Õ : < 0.2dB , ÃÖ´ë : < 0.4dB |
< 0.4dB |
> 50dB |
> 60dB |
MU |
Æò±Õ : < 0.2dB , ÃÖ´ë : < 0.4dB |
< 0.4dB |
> 50dB |
- |
|
Application
- Terminal Box and Cable Mating
- Terminal Box And Optic Equipment Mating
- Various Optic Charactors Mating |
Standard
- Compatible with IEC
- Compatible with Bellcore
- Compatible with Telcordia |
|
|
|
|
´Ü¸é [End Face] |
|
|

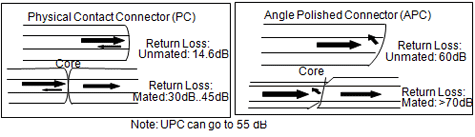

¹Ý»ç¼Õ½Ç (Return Loss) |
|
|

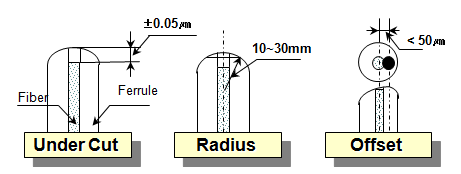

´Ü¸éºÎ Ç¥¸éƯ¼º (Geometry Of Ferrule) |
|
|
|
|
|
|
|
|
|
Charactoeristics |
Conditions |
Values |
Insertion Loss |
- |
< 0.15dB |
Durability |
500 matings |
< 0.2dB |
Temperature Cycling |
-40~+80¡É(42 cycles) |
< 0.2dB |
Humidity Cycling |
75¡É, 95%/336hr |
< 0.2dB |
Vibration |
10~55Hz(2hr) |
< 0.2dB |
Impact |
1.5m drop, 8times |
< 0.2dB |
|
|
|
|
|
|
Optical Level |
IL (Insertion Loss) |
RL (Return Loss) |
1 ~ 10dB |
+/- 0.5dB |
PC : > 50dB , APC : > 60dB |
11 ~ 20dB |
+/- 1.0dB |
PC : > 50dB , APC : > 60dB |
21 ~ 25dB |
+/- 1.5dB |
PC : > 50dB , APC : > 60dB |
26 ~ 30dB |
+/- 2.0dB |
PC : > 50dB , APC : > 60dB |
|
|
|
|
|
|
